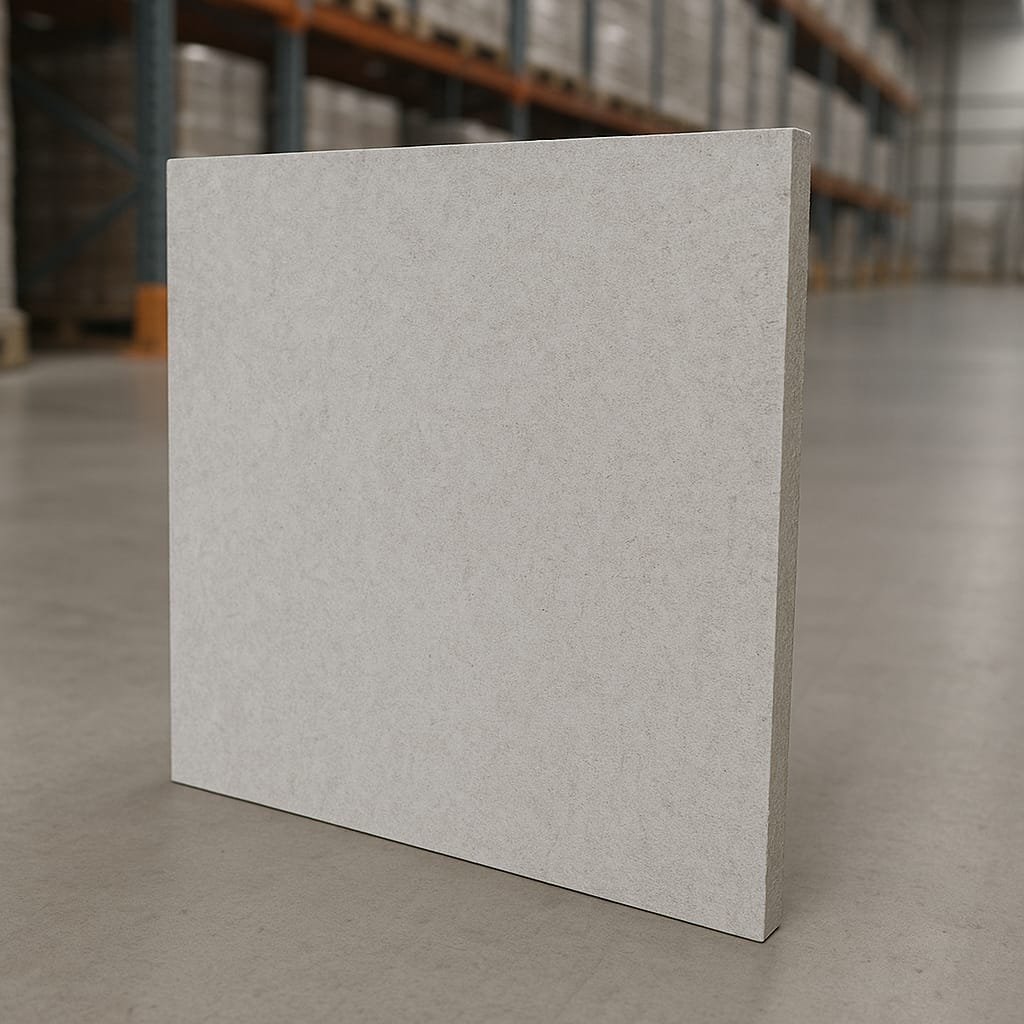

Asbestos Board
Made from high grade asbestos fiber used for make fire screens, Protecting walls, Lining furnaces and anything that required heat and fire protection. It can also be used as electrical insulation. The thickness available ranges from 3mm-12mm and the dimensions are 500mm*500mm.
- Rigid pressed millboard — holds its shape unlike flexible cloth or rope
- Withstands continuous service around 500°C without loss of strength
- Dense and dimensionally stable; cuts cleanly into panels and gaskets
- High tensile strength for a board-form insulation material
- Non-asbestos calcium-silicate board available as a like-for-like alternative
Overview
Asbestos Board (millboard) is a rigid, pressed sheet of asbestos fibre bonded with a clay/starch binder, used for high-temperature insulation, gasketing and fire protection around furnaces, ovens and hot equipment. It is dense, dimensionally stable, and cuts cleanly into panels and gaskets.
It withstands continuous service around 500°C without loss of strength, and can tolerate brief exposure to much higher temperatures (up to roughly 1500°C) when properly supported. Where asbestos is not permitted, non-asbestos calcium-silicate board offers similar rigid, high-temperature protection.
Specifications
| Material | Asbestos millboard (clay/starch bonded) |
|---|---|
| Continuous Temperature | ~500°C (brief exposure to ~1500°C, supported) |
| Density | 0.9 – 1.2 g/cm³ |
| Thickness | 1.5 mm to 12 mm (heavier grades to 25 mm) |
| Tensile Strength | ≥15 kgf/cm² |
| Alternative | Non-asbestos calcium-silicate board available |
Applications
Industries Served
Commonly specified across:
Frequently Asked Questions
What temperature can Asbestos Board handle?
It withstands continuous service around 500°C without loss of strength, and can briefly tolerate much higher heat (up to roughly 1500°C) when properly supported.
What thickness does Asbestos Board come in?
Common millboard runs 1.5 mm to 12 mm thick, with heavier pressed grades available up to about 25 mm.
Is a non-asbestos alternative available?
Yes — non-asbestos calcium-silicate board gives similar rigid, high-temperature protection where asbestos is not permitted.
