Plain Gauge Glass

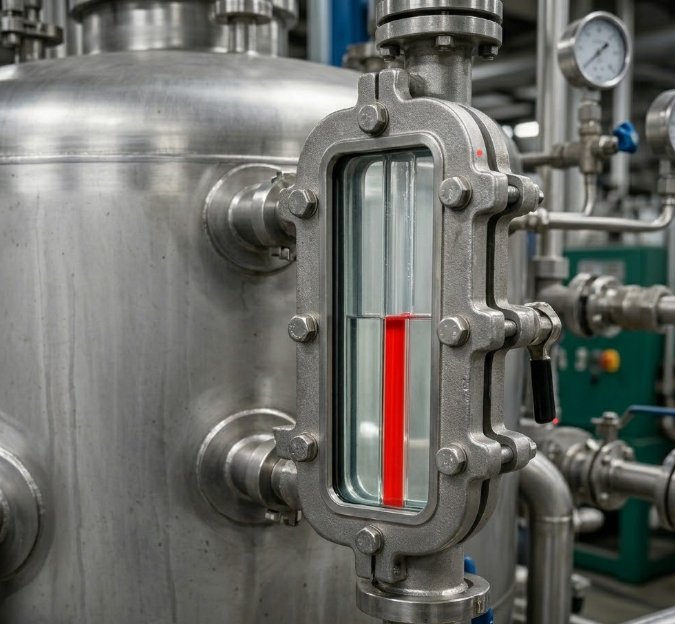

In this kind of level gauge the medium is contained within two glasses whose surfaces are both smooth.The medium level can be easily observed looking through the glasses.Thanks to its resistant glasses this level gauge is particularly suited to be used with aggressive media or in the presence of steam since protective mica shields can be installed between the medium and the glass.In order to improve visibility under special operating conditions an illuminator also known as MICA shields can be mounted on one side of the transparent level gauge.These are available in different sizes depending on customer requirement.
- Transparent tubular glass for direct water-level viewing
- Toughened borosilicate construction rated for steam-boiler service
- Handles high pressure and high temperature
- Simple, direct read — no reflex prism needed
- Supplied in standard tube diameters and lengths
Overview
Plain Gauge Glass is a transparent tubular level glass fitted to boilers and tanks to show the internal water or liquid level directly. It gives a simple, clear view of the level through the glass.
Made from toughened borosilicate glass, it is rated for high-pressure, high-temperature steam-boiler service in standard tubular sizes.
Specifications
| Material | Toughened borosilicate glass |
|---|---|
| Type | Transparent tubular |
| Rating | High-pressure steam service |
| Sizes | Standard tube diameters & lengths |
| Reading | Direct level view |
Applications
Industries Served
Commonly specified across:
Frequently Asked Questions
What is Plain Gauge Glass used for?
As a tubular level indicator on boilers and tanks, giving a direct view of the water or liquid level.
Is Plain Gauge Glass rated for steam?
Yes — it is toughened borosilicate glass made for high-pressure steam-boiler service.
What sizes are available?
Standard tube diameters and lengths; specify your gauge fitting.
Do you deliver Plain Gauge Glass outside Lahore?
Yes. We are based in Lahore and supply plain gauge glass across Pakistan, including Karachi, Islamabad, Faisalabad, Gujranwala, Sialkot and Multan. Delivery is by road freight. Tell us the size, range and working pressure and the destination city, and we will confirm delivered cost and timing.
Download the Plain Gauge Glass Datasheet
Full specifications, applications and industries served — in one PDF for your records or to share with your team.
Related Gauge Glass
View all Gauge Glass →
Need a quote or a spec check?
Send us your operating conditions and we'll help you source the right Plain Gauge Glass for the job.
