Asbestos Woven Brake Lining

Asbestos woven brake lining rolls are excellent in stability having ultimate stopping power,Low wear giving longer performance life,Drum compatibility,Superior fade recovery,Water resistance and speed sensitivity.They have an excellent overall rating with a stable coefficient of friction and low wear over a wide range of temperatures and speeds.These brake linings are recommended for passenger cars,Trucks,Buses,Tractors,Other light and heavy-duty range of commercial vehicles and different types of small and large industrial machinery.Different sizes are available based on customer demand.

Brass-wire-reinforced asbestos yarn construction
Stable coefficient of friction around 0.4
Good heat resistance, rated to around 350°C
Drilled and cut to your brake band pattern
Non-asbestos equivalent available where required

PKR 500 – 7,800 / ft Priced by the foot. A thicker section carries more material, so it sits higher in the range. Ex-Lahore, and rates move with raw-material and import costs — send us the specification and we will confirm the exact figure with the quote.

Request a Quote WhatsApp

Download Datasheet (PDF)

Overview

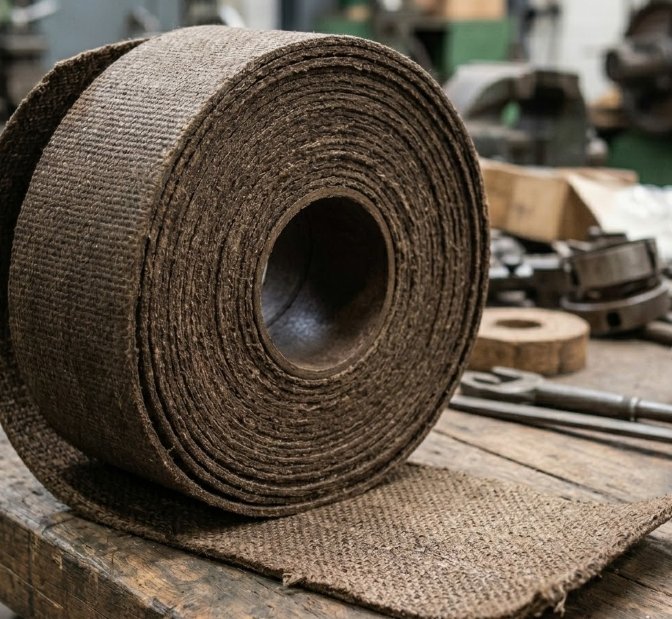

Asbestos Woven Brake Lining is a flexible friction lining woven from brass-wire-reinforced asbestos yarn, for the brakes and clutches of winches, hoists, cranes and heavy machinery. Non-asbestos equivalents with comparable performance are available where required.

It provides a stable coefficient of friction and good heat resistance, and can be drilled and cut to your brake band.

Specifications

Material	Brass-reinforced asbestos yarn
Coefficient of Friction	~0.4
Max Temperature	~350°C
Thickness	3 mm to 12 mm
Form	Roll / band, drilled to order
Alternative	Non-asbestos grade available

Applications

Winch & hoist brakes

Crane & drum brakes

Band & clutch surfaces

Heavy-machinery braking

High-heat friction duty

Industries Served

Commonly specified across:

Cranes & Hoists Steel Mills Cement Plants Mining Oil & Gas

Frequently Asked Questions

What is Asbestos Woven Brake Lining used for?

On the brakes and clutches of winches, hoists, cranes and heavy machinery.

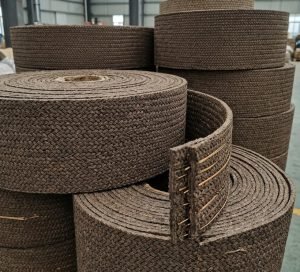

Is a non-asbestos alternative available?

Yes — non-asbestos woven brake lining with comparable friction and heat resistance is available.

Can it be drilled to our pattern?

Yes — it is supplied in rolls or bands and drilled and cut to your dimensions.

Do you deliver Asbestos Woven Brake Lining outside Lahore?

Yes. We are based in Lahore and supply asbestos woven brake lining across Pakistan, including Karachi, Islamabad, Faisalabad, Gujranwala, Sialkot and Multan. Delivery is by road freight. Tell us the size, grade and quantity and the destination city, and we will confirm delivered cost and timing.
