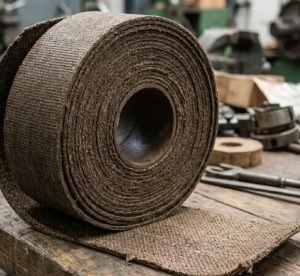

Non Asbestos Woven Brake Lining

Asbestos-free brake lining is manufactured from strong woven cotton fabric impregnated with special resins to produce a brake lining that combines strength and flexibility with a high friction coefficient.This material is designed for low temperatures and high friction.The material offers excellent riveting strength and is suitable for gluing.It offers limited oil resistance and is not recommended for applications immersed in oil.The most important areas of application are braking systems requiring a very high friction coefficient but in which temperatures are not excessively high.Examples are static winches,Bracket systems and cone clutches for hoists.

Brass-wire-reinforced synthetic yarn — no asbestos
Stable coefficient of friction around 0.4
Resists fade under repeated braking, rated to ~300°C
Drilled and cut to your brake band pattern
Used on winch, hoist and crane brakes

PKR 500 – 9,000 / ft Priced by the foot. A thicker section carries more material, so it sits higher in the range. Ex-Lahore, and rates move with raw-material and import costs — send us the specification and we will confirm the exact figure with the quote.

Request a Quote WhatsApp

Download Datasheet (PDF)

Overview

Non-Asbestos Woven Brake Lining is a flexible friction lining woven from brass-wire-reinforced synthetic yarn, giving a stable, heat-resistant friction surface for winches, hoists, cranes and industrial brakes — without asbestos.

It holds a consistent coefficient of friction (around 0.4) and resists fade under repeated braking, and can be drilled and cut to your brake band.

Specifications

Material	Brass-reinforced non-asbestos yarn
Coefficient of Friction	~0.4
Max Temperature	~300°C (fade resistant)
Thickness	3 mm to 12 mm
Form	Roll / band, drilled to order

Applications

Winch & hoist brakes

Crane & drum brakes

Band & clutch surfaces

Industrial braking

Repeated high-heat braking

Industries Served

Commonly specified across:

Cranes & Hoists Steel Mills Cement Plants Mining Oil & Gas

Frequently Asked Questions

What friction level does Non-Asbestos Woven Brake Lining give?

A stable coefficient of friction around 0.4, with good resistance to fade under repeated braking.

What thickness does it come in?

Typically 3 mm to 12 mm, supplied in rolls or bands and drilled to your pattern.

Is it really asbestos-free?

Yes — it uses brass-reinforced synthetic yarn instead of asbestos.

Can you supply Non Asbestos Woven Brake Lining to Karachi or Islamabad?

Yes. We are based in Lahore and supply non asbestos woven brake lining across Pakistan, including Karachi, Rawalpindi, Islamabad, Multan, Faisalabad and Sialkot. Delivery is by road freight. Give us the size, grade and quantity plus your city and we will come back with carriage and lead time.
