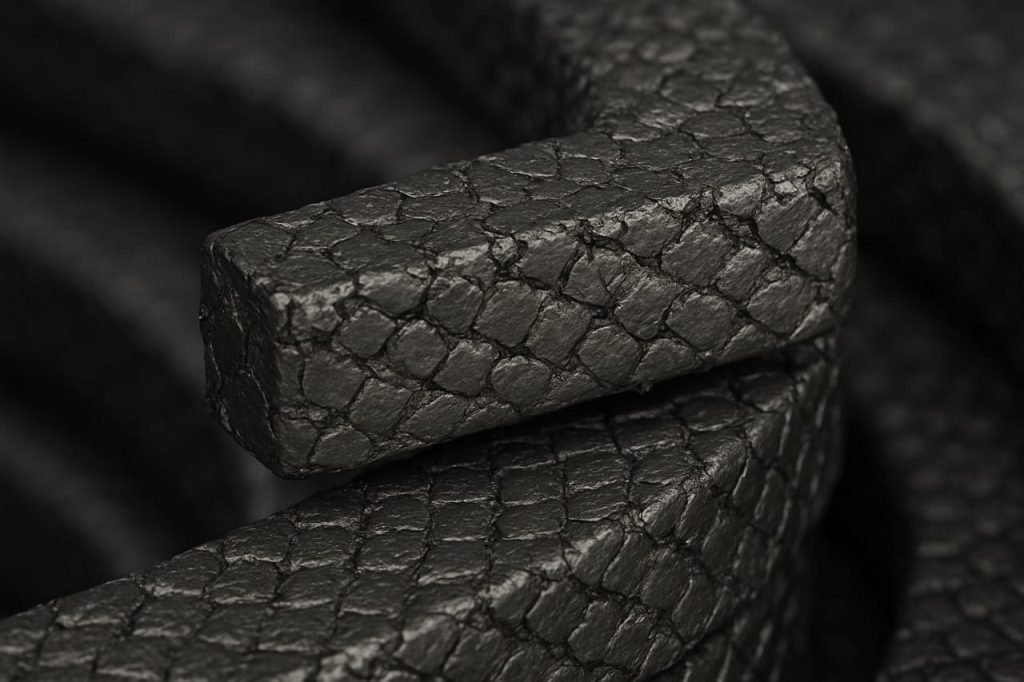

Carbon Fiber Packing

Carbon packing is made up of pure carbon fibres. Carbonized packing is braided by strong carbon fiber after softening treatment and impregnation with the mixture of fine graphite powder, PTFE dispersion and special lubricant. Being strong, Static and heat-conductive it is widely used with revolving of reciprocating pumps where media of chemical corrosion and grains of particles exist.It can withstand continuous temperatures upto 600 c and the working pressure range is 250bar/3500psi.

Braided from high-purity carbon fibre yarn
Rated to around 600°C — higher than PTFE or ordinary fibre packings
Excellent thermal stability and self-lubrication
Handles shaft speeds up to 20 m/s with minimal wear
Resists the full pH 0–14 range except strong oxidisers

Request a Quote WhatsApp

Download Datasheet (PDF)

Overview

Carbon Fiber Packing is braided from high-purity carbon yarn, offering excellent thermal stability, strength and self-lubrication with very low shaft wear. It is a strong choice where PTFE would be too soft and graphite too conductive.

It handles temperatures up to around 600°C across the full pH 0–14 range (except strong oxidisers) and shaft speeds to about 20 m/s, making it ideal for hot, high-speed pump and valve duty.

Specifications

Material	Carbon fibre yarn
Max Temperature	600°C
pH Range	0 – 14 (except strong oxidisers)
Max Shaft Speed	20 m/s
Cross-sections	3 mm to 25 mm square
Form	Continuous coil, cut to length

Applications

High-temperature pumps

Boiler & steam valves

High-speed rotating shafts

Chemical & solvent media

Power & process plant

Industries Served

Commonly specified across:

Power Plants Chemical Plants Oil & Gas Steel Mills Sugar Mills

Frequently Asked Questions

How hot can Carbon Fiber Packing get?

Carbon fibre packing is rated for continuous service up to around 600°C — higher than PTFE or ordinary fibre packings.

What shaft speed does Carbon Fiber Packing allow?

It handles high linear shaft speeds up to about 20 m/s while protecting the shaft from wear.

Is Carbon Fiber Packing chemically resistant?

Yes, across the full pH 0–14 range apart from strongly oxidising media.

Download the Carbon Fiber Packing Datasheet

Full specifications, applications and industries served — in one PDF for your records or to share with your team.

Download PDF

Need a quote or a spec check?

Send us your operating conditions and we'll help you source the right Carbon Fiber Packing for the job.

Request a Quote Back to Catalog
