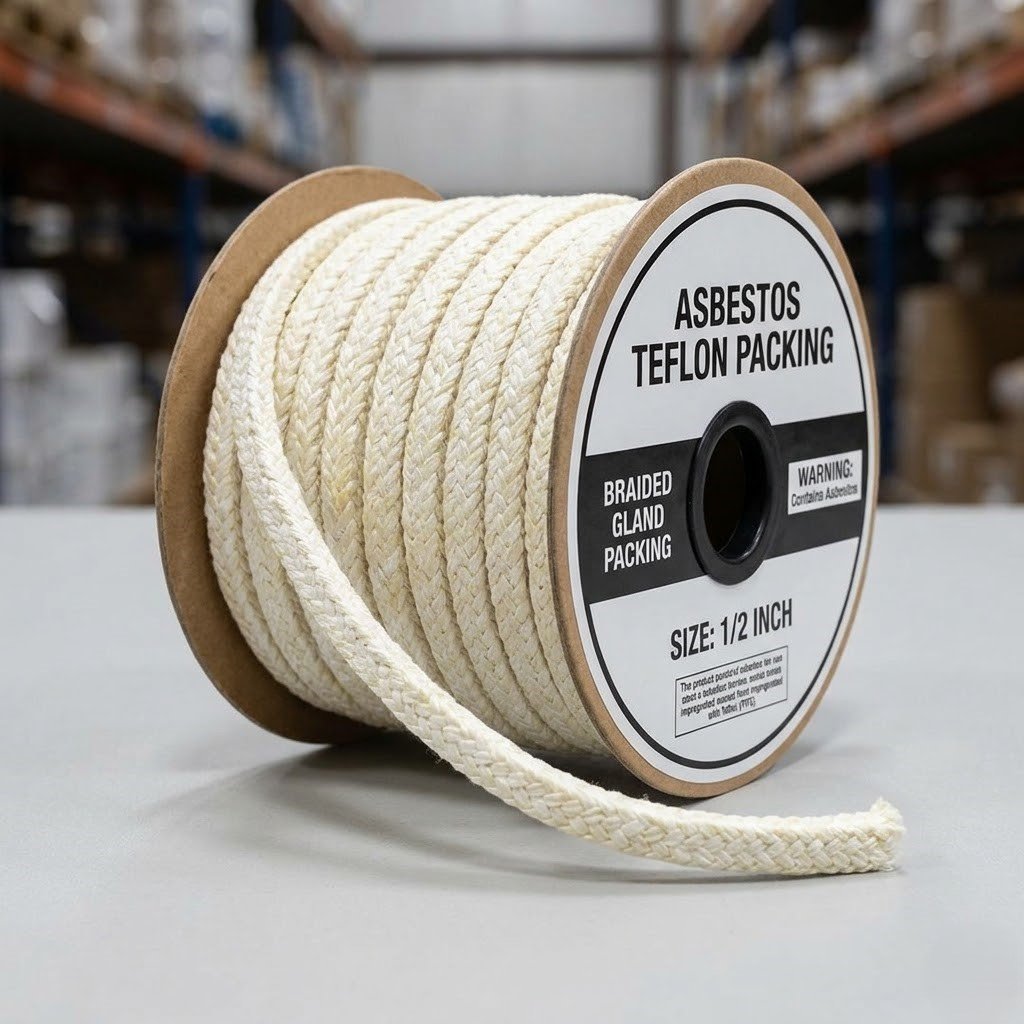

Asbestos Teflon Packing

Asbestos teflon packing is general purpose packing.It is made up of asbestos fibres braided together with PTFE impregnation.It is a flexible and compact packing.It can be utilized on stainless steel and chromed shafts.It has a continuous working temperature up-to 260c.It has the Ph range of 2-12 and is mostly suitable for alkalis, Inorganic acids, Water, Steam and Organic acids etc. Asbestos teflon packing with lubricants is recommended for use with reciprocating pumps or for the sealing in places where linear velocity is up to 10 m/s.It is available in square braiding and the sizes available range from 3mm to 25mm.

Asbestos yarn impregnated with PTFE for low friction and heat resistance
Rated to around 280°C across pH 2–12
Suited to chemical and general-service pumps and valves
Non-asbestos PTFE grade available with similar performance
Supplied as a continuous coil, cut to gland size

Request a Quote WhatsApp

Download Datasheet (PDF)

Overview

Asbestos Teflon Packing braids asbestos yarn impregnated with PTFE, combining heat resistance with PTFE’s low friction and chemical resistance. Non-asbestos PTFE grades are available where asbestos is restricted.

It is rated to around 280°C across pH 2–12 and suits chemical and general pump and valve service where a clean, low-friction seal is needed.

Specifications

Material	Asbestos yarn, PTFE-impregnated
Max Temperature	280°C
pH Range	2 – 12
Service	Chemical & general duty
Alternative	Non-asbestos grade available
Form	Continuous coil, cut to length

Applications

Chemical pumps & valves

Mild-acid/alkali service

General rotating shafts

Process equipment

Clean-service sealing

Industries Served

Commonly specified across:

Chemical Plants Textile Mills Sugar Mills Paper Mills Water Treatment

Frequently Asked Questions

What is Asbestos Teflon Packing used for?

It seals chemical and general-service pumps and valves where low friction and moderate heat resistance are needed.

What temperature and pH does it suit?

It is rated to around 280°C across pH 2–12.

Is a non-asbestos alternative available?

Yes — non-asbestos PTFE packing with similar performance is available on request.

Download the Asbestos Teflon Packing Datasheet

Full specifications, applications and industries served — in one PDF for your records or to share with your team.

Download PDF

Need a quote or a spec check?

Send us your operating conditions and we'll help you source the right Asbestos Teflon Packing for the job.

Request a Quote Back to Catalog
